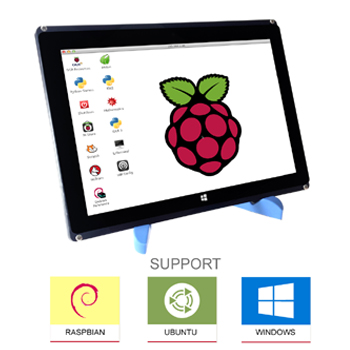

This 10.1 inch Hdmi input capacitance screen touch screen lcd use more widly，support raspberry pi3B,2B,B/B+、banana pi 、banana pro 、beaglebone and you can also use it as a computer monitor just like any other general HDMI screen (not support touch function) .The solution is 1280*800, much better touch response, larger viewing angle, faster response time than resistive touch screen,We diy a bracket to the screen，make your pi to be a really Integrated Computer.The screen has the protective film in order to protect it shipping safe ，you can remove it when use it.

If you choose to use a distribution(Raspbian/Ubuntu/win10 Iot) from the Raspberry Pi Website in place of our pre- compiled distributions, you only should locate the “config.txt” file we provided, then replace the original “conf  ig.txt” file and save. It can work properly.

The best simple way is add the follow line to the end of the config.txt：

max_usb_current=1

hdmi_group=2
 hdmi_mode=1
 hdmi_mode=87
 hdmi_cvt 1280 800 60 6 0 0 0

saved and reboot.

Features：

●10.1-inch TFT screen display, 1280x800 Resolution

●capacitive touch screen, IPS full view ,supports up to ten-points touch

●USB touch and power supply

●HDMI input

●Powered by USB，5V@2.5A

●Supports Raspberry Pi(Raspbian/Ubuntu/Win 10 Iot), BB Black(Angstrom), Banana Pi / Banana Pro(Raspbian/Ubuntu ),all img we will provided

●Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen (win7、win8、win 10 is available)

●Lcd driver IC: ILI9486L
●Refresh rate：60HZ
● Lcd Size ：254mm*170mm

File download：

User guide:download

Raspbian and Ubuntu config file : download

win 10 Iot config file : download

Package Content：

10.1 inch(1280x800)Touch Screen LCD Display x1

UBS cable x1

Touch cable x1
Customized shell for lcd（need to assemble by youself）x1
