Eleduino Arduino Serial Port Bluetooth Module with 4P DuPont Cable 0 (from 0 reviews) 8.60 USD In Stock
Arduino Serial Port Bluetooth Module with 4P DuPont Cable

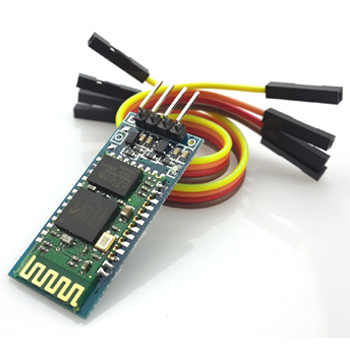

Arduino Serial Port Bluetooth Module with 4P DuPont Cable #10510

US$ 8.60
Bulk Price
The bulk price start at 2+,the system will give the discount price automatically,order more,discount more.
Add to favorite
Return Policy:
Returns accepted if product not as described,buyer pays return shipping:orkeep product& agree refund with seller View details


1. Industrial serial port bluetooth, Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish connection between MCU and GPS, PC to your embedded project and etc. Computer and peripheral devices

2. GPS receiver Industrial control MCU projects

3.Running in slave role: Pair with BT dongle and master module

4.powered. PC hosted mode: Pair the module with bluetooth dongle directly as virtual serial.

5.Default serail port setting : 9600 1 Pairing code : 1234


Product Description:

Bluetooth protocal : Bluetooth Specification v2.0+EDR
Frequency : 2.4GHz ISM band
Modulation : GFSK(Gaussian Frequency Shift Keying)
Emission power : <=4dBm, Class 2
Sensitivity : <=-84dBm at 0.1% BER
Speed : Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
Security : Authentication and encryption
Profiles : Bluetooth serial port
CSR chip : Bluetooth v2.0
Wave band : 2.4GHz-2.8GHz, SM Band
Protocol : Bluetooth V2.0
Power Class : (+6dbm)
Reception sensitivity: -85dBm
Voltage : 3.3 (2.7V-4.2V)
Current : Paring - 35mA, Connected - 8mA
Temperature : -40~ +105 Degrees Celsius
User defined Baud rate : 4800, 9600, 19200, 38400, 57600, 115200, 230400,460800,921600 ,1382400.
Pin definition :
* PIO8 connects with LED cathodea with 470ohm series resistor in between. LED NEGATIVE connects to ground. After powered on, flashing intervals differ in different states.
* PIO9 is used to control LED indicating paring. It will be steady on when paring is successful.
* PIO11, module state switching pin. HIGH -> response to AT command; LOW or floating -> regular work status.
* With build-in reset circuit, reset is completed automatically after powered on.
* Steps to set to MASTER:
* Set PIO11 HIGH with a 10K resistor in between.
* Power on, module comes into AT Command Response Status
* Open HyperTerminal or other serial tool, set the baud rate 38400, 8 data bits, 1 stop bit, no parity bit, no Flow Control
* Via serial port, send characters "AT + ROLE = 1 r n",if successful, return "OK r n", where r n is carriage return.
* Set PIO11 LOW, re-power, then in Master state, automatically search for slave module and connect.

Package Included:

Arduino Serial Port Bluetooth Module with 4P DuPont Cable *1
