Eleduino Banana pi devboard 0 (from 0 reviews) 36.90 USD In Stock
Banana pi devboard

Banana pi devboard #10519

US$ 36.90
Bulk Price
The bulk price start at 2+,the system will give the discount price automatically,order more,discount more.
Add to favorite
Return Policy:
Returns accepted if product not as described,buyer pays return shipping:orkeep product& agree refund with seller View details

Product Description:

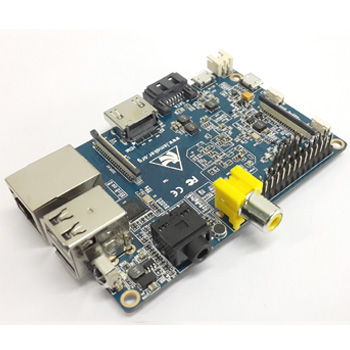

Banana Pi is an open-source single-board computer, affordable with extensible configurations. It provides high performance from AllWinner SoC and 1GB DDR3 SDRAM. It is versatile and can run Android, Ubuntu, Debian and so on.

Banana Pi is raw, it is for anyone who wants to play and create with computer technologies, instead of simply being a consumer of electronics. It's a simple, fun and useful, it is a tool that you can use to start taking control of the world around you.


CPU:A20 ARM CortexTM-A7 Dual-Core
GPU:ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
Memory (SDRAM):1GB DDR3 (shared with GPU)
Onboard Storage :SD (Max. 64GB) / MMC card slot UP to 2T on 2.5 SATA disk
Onboard Network:10/100/1000 Ethernet RJ45,optional WIFI
Video Input:A CSI input connector allows for the connection of a designed camera module
Video Outputs:HDMI, CVBS , LVDS/RGB
Audio Output :3.5 mm Jack and HDMI
Power Source:5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG)
USB 2.0 Ports:2 (direct from Allwinner A20 chip) Buttons :Reset button: Next to MicroUSB connector
Power button: Next to Reset button
Boot button (Optional): Behind HDMI connector
GPIO(2X13) pin :GPIO,UART,I2C bus,SPI bus with two chip selects,
CAN bus,ADC,PWM,+3.3v,+5v,ground.
LED:Power Key & RJ45
Remote :IR (Optional)
OS :Android 4.2,Firefox OS and Linux etc. OS
Product size :92 mm × 60mm

Package Included:

Banana pi board × 1
