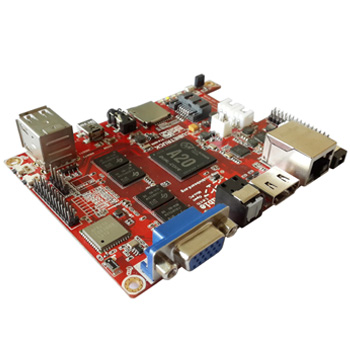

Cubietruck is the 3rd board of Cubieteam, we also name it Cubieboard3. It's a new PCB model adopted with Allwinner A20 main chip, the same with Cubieboard2. But it is enhanced with some features, such as 2GB memory, VGA display interface on-board, 1000M NIC, WIFI+BT on-board, support Li-battery and RTC, SPDIF audio interface.

Features

    Allwinner Tech A20 SOC

    SATA supported

    54 extended pins

    Built-in HDMI/ VGA display interface

    Built-in WIFI+BT module

    2GB DDR3 RAM

    Built-in IR receiver

    SPDIF audio interface

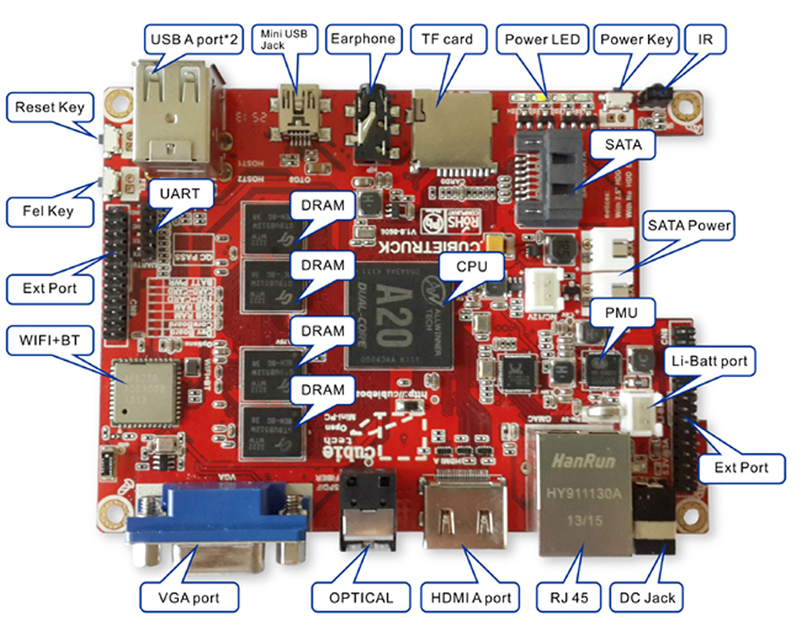

 Specifications

All Winner Tech SOC A20ARM® Cortex™-A7 Dual-CoreARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1
2GB DDR3@480MHz (960MTPS)
HDMI&VGA 1080P display output on-board
10M/100M/1G Ethernet
Wifi+BT wireless connection with antenna on-board
SATA 2.0 interface support 2.5’ HDD(for 3.5’ HDD, only need another 12V power input)
Storage solution:8G NAND+MicroSD
2 x USB HOST, 1 x OTG ,1 x Toslink (SPDIF Optical),1 x IR ,4 x LEDs ,1 Headphone, 3 x Keys
PowerDC5V @ 2.5A with HDDsupport Li-battery & RTC
54 extended pins including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWMx2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVINx4 with 2.0 pitch connectors
PCB size: 11cm *8cm*1.4mm,very suite for installing a 2.5’ HDD

 Includes

  Cubietruck main board x1

  SATA 2.0 cable x1

  Mini USB to OTG x1

  Mini USB cable x1

  USB to 1.7 mm DC jack cable x1

  Acrylic casex1

  Ultrathin Heat Sink x1
