Product Description:

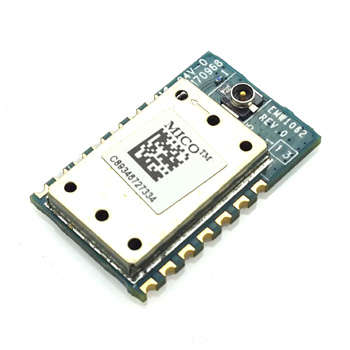

The EMW1062 802.11b/g/n module provides wireless modem functionality utilizing direct sequence spread spectrum and OFDM/CCK technology. This module is based on Broadcom BCM43362KUBG solution which is integrated 2.4GHz IEEE802.11 b/g/n(MAC/baseband/radio), power amplifiers (PA), power management unit (PMU), and SDIO 2.0 interface.
 The wireless LAN is compliant to IEEE 802.11b and IEEE 802.11g and IEEE 802.11n                            standard. The data rate of 802.11b is up to 11Mbps and fallback rates of 5.5, 2, 1Mbps.  The data rate of 802.11g is up to 54Mbps and fallback rates of 48,36,24,18,12,9,  6Mbps. The data rate of 802.11n HT20 with 800ns GI is up to 65Mbps and fallback  rates of 58.5, 52, 39, 26, 19.5, 13, 6.5Mbps; the data rate of 802.11n HT20 with 400ns  GI is up to 72.2Mbps and fallback rates of 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2Mbps.  The data rate of 802.11n HT40 with 800ns GI is up to 135Mbps and fallback rates of       121.5, 108, 81, 54, 40.5, 27, 13.5Mbps. The data rate of 802.11n HT40 with 400ns GI  is up to 150Mbps and fallback rates of 135, 120, 90, 60, 45, 30, 15Mbps.
Features:
• IEEE802.11b/g/n (1X1) based on Broadcom 43362 solution.
• SDIO 2.0 Interface.
• Module is powered by the host with a 3.3V +/- 10% supply.
• Two separate printed antennas, the one for Tx, the other one for Rx.
• RoHS and Green Compliant.
Package Included:
EMW1062*1
