Waveshare LCD Expansion Cape +4.3 LCD mudule 0 (from 0 reviews) 39.50 USD In Stock
    LCD Expansion Cape +4.3 LCD mudule

    LCD Expansion Cape +4.3 LCD mudule #10471

    (0) Write a review
    US$ 39.50
    Bulk Price
    The bulk price start at 2+,the system will give the discount price automatically,order more,discount more.
    Quantity:
    ADD TO CART
    Add to favorite
    Return Policy:
    Returns accepted if product not as described,buyer pays return shipping:orkeep product& agree refund with seller View details

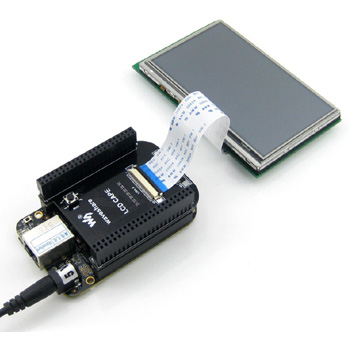

    This is a lcd cape + 4.3 lcd module kit ，you can easy to connect the  resistive touchscreen LCD.

    What's on the LCD CAPE (4.3inch)

    BB Black Expansion CAPE on board resource
    1. BB_BLACK connector : for connecting BB Black
    2. 4.3inch LCD interface : for connecting 4.3inch resistive touchscreen LCD
    3. DEBUG interface : BB Black debug interface, for connecting serial modules
    4. BOOT selection button : Boot from TF card

    LCD CAPE (4.3inch) Development Resources

    Data Types Description Download
    Documentations User Manual
    Porting Drivers
    Porting Kernel
    Porting mjpg-streamer
    Test Code XXX_CAPE_Angstrom_API.7z
    Source Code source code list
    Software software list

    Data Types Description Download
    Schematics LCD CAPE.pdf
    Image Angstrom-Cloud9-IDE-GNOME-eglibc-ipk-v2012.12-beaglebone-2013.05.24-LCD-cape-LCD4.3-v1.1.img.7z
    Debian-sdcard-beaglebone-2015.02.27-LCD-cape-LCD4.3-v1.0.img.7z
    Debian-sdcard-beaglebone-2015.02.27-LCD-cape-LCD4.3-v2.0.img.7z

    Package Contains

    1. LCD CAPE (4.3inch) x 1
    2. 4.3inch 480x272 Touch LCD (A) x 1
    3. USB to TTL 4-pin Wire × 1
    4. Power Adapter US Standard 5V 2A 5.5/2.1mm × 1
    5. USB type A plug to mini-B plug cable x 1
    6. 40-pin FFC 0.5 150mm (opposite sides contact) x1
    7. 4.3inch LCD screws pack x 1
