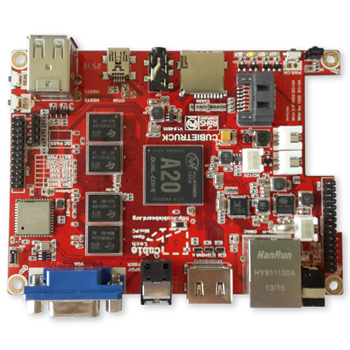

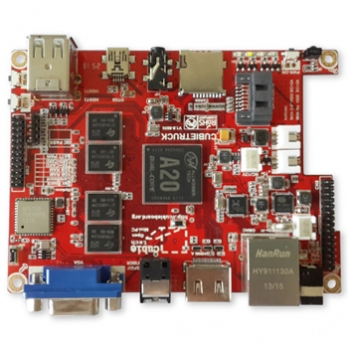

Cubietruck is the 3rd board of Cubieteam, we also name it Cubieboard3. It's a new PCB model adopted with Allwinner A20 main chip, the same with Cubieboard2. But it is enhanced with some features, such as 2GB memory, VGA display interface on-board, 1000M NIC, WIFI+BT on-board, support Li-battery and RTC, SPDIF audio interface.

Features:

 Allwinner Tech A20 SOC

 SATA supported

 54 extended pins

 Built-in HDMI/ VGA display interface

 Built-in WIFI+BT module

 2GB DDR3 RAM

 Built-in IR receiver

 SPDIF audio interface

 Specifications:

All Winner Tech SOC A20ARM® Cortex™-A7 Dual-CoreARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1
2GB DDR3@480MHz (960MTPS)
HDMI&VGA 1080P display output on-board
10M/100M/1G Ethernet
Wifi+BT wireless connection with antenna on-board
SATA 2.0 interface support 2.5’ HDD(for 3.5’ HDD, only need another 12V power input)
Storage solution:8G NAND+MicroSD
2 x USB HOST, 1 x OTG ,1 x Toslink (SPDIF Optical),1 x IR ,4 x LEDs ,1 Headphone, 3 x Keys
PowerDC5V @ 2.5A with HDDsupport Li-battery & RTC
54 extended pins including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWMx2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVINx4 with 2.0 pitch connectors
PCB size: 11cm *8cm*1.4mm,very suite for installing a 2.5’ HDD

 Includes:

Cubietruck main board x1

Cubietruck black case x1

SATA 2.0 cable x1

Mini USB to OTG x1

Mini USB cable x1

USB to 1.7 mm DC jack cable x1

Usb to ttl cable x1

3.5HDD package module x1

Ultrathin Heat Sink x1
