JYE Tech DSO062 Digital Oscilloscope DIY Kit 0 (from 0 reviews) 45.60 USD In Stock

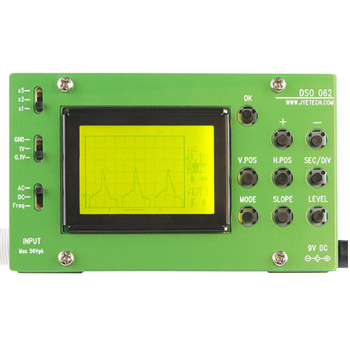

DSO062 Digital Oscilloscope DIY Kit

DSO062 Digital Oscilloscope DIY Kit #10515

US$ 45.60
Bulk Price
The bulk price start at 2+,the system will give the discount price automatically,order more,discount more.
Add to favorite
Return Policy:
Returns accepted if product not as described,buyer pays return shipping:orkeep product& agree refund with seller View details

Product Description:

This kit includes everything you need to build your very own, fully functional, digital oscilloscope. Once you’ve got it up and running, the oscilloscope features up to 5M samples/second, 8-bit resolution, up to 50Vpp max input voltage, and more!

This kit includes a semi-populated PCB, with all of the surface mount components already soldered on for you. The components left for you to solder are all through-hole. This is on the higher end of difficulty as far as through-hole kits go.

This kit pairs nicely with our BNC Probe Kit! A 9V power supply is required to run the oscilloscope; supply is not included.


Maximum equivalent-time sampling rate (repetitive signal) - 20MSa/s

Maximum real-time sampling rate - 2MSa/s

Resolution - 8 bits

Record length - 256 bytes

Analog bandwidth - 1MHz

Vertical sensitivity - 100mV/Div - 5V/Div

Vertical position adjustable with indicator

Input impedance - 1M ohm

Max input voltage - 50Vpk (1x probe) [500Vpk for 10x probe]

DC/AC/GND coupling

Horizontal - 0.5us/Div - 10m(minute)/Div

Auto/Normal/Single trig modes

Rising/Falling edge trigger

External trig available

Trigger output is available, which makes it possible to cascade scopes to do multi-channel capture.

Trigger level adjustable with indicator

Hold/run feature

Save/recall up to 6 captures

FFT function available - size of 256 points and 512 points selectable, sampling rate of 1Ksps to 2Msps selectable

Transfer screen to PC as bitmap file via serial connection

Built-in 500Hz/5Vpp test signal

Frequency Meter (For TTL level input signal)

Auto switching between Oscilloscope Mode and Frequency Meter Mode

9V DC power supply

Dimension: 110mm X 65mm X 25mm (without case)

Weight: 125 gram (not including probe and power adapter)


Quick Reference

Operating Instructions

Assembly Notes

Troubleshooting Guide



Part List

Assembly Back

Assembly Front

Main PCB mechanical file

Panel mechanical file

Source Code (Learning Edition)

How to Program 062 Oscilloscope

How to Upgrade Firmware by Bootloader

Course Project Manual

Package Included:

DSO062 Digital Oscilloscope DIY Kit*1
