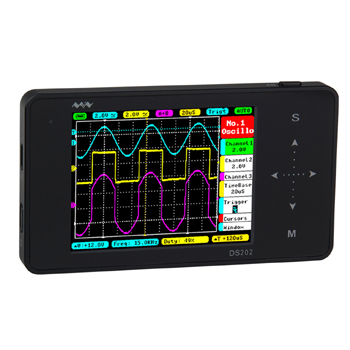

Nano ARM DS202 Portable Mini Handheld Digital Storage Oscilloscope

Nano ARM DS202 Portable Mini Handheld Digital Storage Oscilloscope #10494

US$ 109.90
Bulk Price
The bulk price start at 2+,the system will give the discount price automatically,order more,discount more.
Add to favorite
Return Policy:
Returns accepted if product not as described,buyer pays return shipping:orkeep product& agree refund with seller View details


This pocket size oscilloscope is a 2-channel digital oscilloscope.

You will find it compact and fashionable because it is merely 10mm talland enjoys an aluminum alloy.

Equipped with 320*240 color display, 8M Memory Card (U Disk), and chargeable Lithium batteries.

It supports SD card USB flash disk storage and USB charging.

It is widely applicable inacademic experiment, electronicsmaintenance, electronic engineering tasks.


-Analog bandwidth: 1MHz
-Max sample rate: 10MSa/s
- Max sample memory depth: 8K
- Analog input impedance: 1MΩ
- Max input voltage: ±40V( X1 probe)
- Coupling: AC/DC
- Vertical Sensitivity: 20mv/Div~10V/Div (stepping in by 1-2-5mode)
- Horizontal sensitivity: 1uS/Div~2S/Div(1-2-5stepping)
- Math waveforms: -A,-B, A+B, A-B, RecA, RecB, RecC
- Triggering Mode:Auto, Normal, Single, None, Scan
- Rising/Falling Edge Trigger
- Vertical precise,Horizontal Precise Measurement
- Waveform Functions Auto measurement: frequency, cycle time, duty cycle, peak voltage, RMS voltage, Average voltage and DC voltage
- Signal Generator/10Hz~1MHz square wave(duty adjustable) or 10Hz~20Khz Sine/Square/Triangle/Sawtooth wave
- U disk Waveform storage of 8MB, can store waveform data and waveform image
- Power supply internal 550mAh Lithium battery/external USB port
- Display Full Color TFT LCD(320X240 pixels)
- Capacitive touchscreen: support input by finger sliding
- Dimension (100mm X 56.5mm X 10.7mm)

- Operating Conditions: +0°C to +50°C
- Non-operating Conditions: -20°C to +60°C
- Operating Conditions: High Temperature: 40°C to 50°C, 0% to 60%RH
- Operating Conditions: Low Temperature: 0° C to 40°C, 10% to 90%RH
- Non-operating Conditions: High Temperature: 40°C to 60°C, 5% to 60%RH
- Non-operating Conditions: Low Temperature: 0° C to 40°C, 5% to 90%RH

Package included:


MCX Probe*1

User Manual*1
