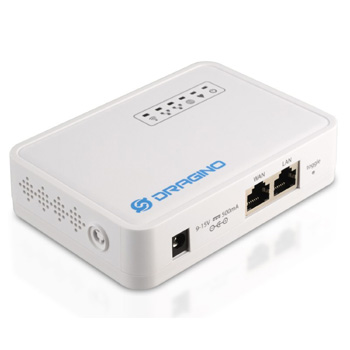

The MS14 is the 2nd generation Dragino mother board. It lets you embed Linux into your MCU projects. It is a low cost, open hardware Linux motherboard for micro-controllers. It runs open source linux system, has USB host port and has full Ethernet and 802.11 b/g/n WiFi capabilities.

The goal of the MS14 is to solve the connectivity problem and greatly enhance micro-controller products such as the Arduino.

MS14 support generic OpenWrt linux version or modified OpenWrt version such as Arduino Yun.

Applications for MS14 include remote control of robots, data logging, web applications for data presentation, mesh networking over WiFi and many more.

#1: Power input, DC, 5V or 9 ~ 15V

#2: Two Ethernet ports WAN and LAN

#3: Programmable PUSH button

#4: GPIOs, SPI, I2C, SLIC, UART, LED, COLD_RESET, 3.3v/5v/raw_vcc

#5: Sensors I/Os

#6: USB host

#7: JTAG and GPIOs

#8: Processor, MIPS 24K, 400Mhz

#9: LEDs(WiFi, WAN, LAN, SYS, Heart Beat, PWR)

#10: Main antenna, chip antenna or external antenna

#11: Diversity antenna

#12: 5V ESD protection

#13: 14 positions screw terminal

- OpenWrt Inside

OpenWrt is a reliable Linux distribution for embedded system. It is open source, under well developed and maintained. OpenWrt used package system, lots of powerful utility, software are maintained as packages form. Users can easily install, remove these packages to make a deep customized system.

- Open Hardware Design

Developers have the possibility to improve or do innovation on the hardware and release a new /unique product base on requirement.

- Low Power Consumption

Around 1 watt power consumption in working mode.

- AP, Client or Mesh mode WiFi

Can be configured in different WiFi mode for various applications.

AP mode: as what a normal WiFi routers does, so other WiFi client can connect to MS14 and share its internet connection.

Client mode: as what a normal PC does to connect to your existent WiFi router for internet connection.

Ad-Hoc for mesh network.

- Stable, Flexible WiFi Design

Can be configured in different WiFi mode for various applications.

AP mode: as what a normal WiFi routers does, so other WiFi client can connect to MS14 and share its internet connection.

Client mode: as what a normal PC does to connect to your existent WiFi router for internet connection.

Ad-Hoc for mesh network.

- Modular Design

The most complicate and difficulty parts are built as mother board. Developers focus on the MCU daughter board design only. This helps to reduce the development time, cost, risk, difficulty to release a new product to test/seize the market.
