Specification:
DC Input Voltage : 11-18V
Display Type: 2x16 LCD Display
Backlight: Blue
Case Material: Metal
Controls: Four Buttons
Case Size: 102x84x29mm
Weight: 233g
PC Communications: USB Port for PC Control & Firmware Upgrade
Balance Current: 200mA/cell
Battery Capacity Range: NiMH/NiCd: 100-50000mAh
LiPo/LiIon/LiFe: 100-50000mAh
Pb: 100-50000mAh
Charge Current: 0.1A-6.0A
Safety Timer: 1-720minutes off
Charge Wattage: 60W
Discharge Wattage: 5W
Balance Cells: 2-6 cells
Memory: 10 different charge/discharge profiles
Features:
1. IMAX B6 mini features the so-called AUTO function that set the feeding current
during the process of charging or discharging.
2. The charger can store up to 10 different charge/discharge profiles for your convenience.
3. The charger allows user to change the end voltage. (for expert user only)
4. IMAX B6 mini is adaptable to various types of lithium batteries, such as LiPo, LiIon
and the new LiFe series of batteries.
5. You can also limit the maximum process time to avoid any possible defect.
Package Contains:

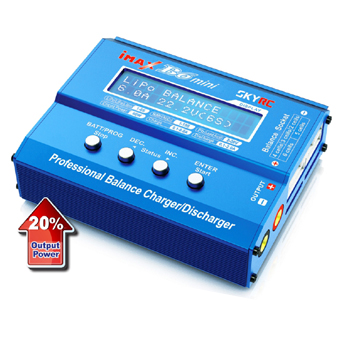

1x SKYRC B6 mini Charger
1x T Plug with Banana connector Charging Cable
1x DC Cable with Alligator Clip Charging Connector
1x T Plug with Alligator Clip connector Charging Cable
1x T Plug with Futaba connector Charging Cable
1x T Plug with JST connector Charging Cable
1x T Plug with XT60 connector Charging Cable
