JYE Tech DSO138 Digital Oscilloscope DIY kit 0 (from 0 reviews) 28.90 USD In Stock
DSO138 Digital Oscilloscope DIY kit

DSO138 Digital Oscilloscope DIY kit #10514

US$ 28.90
Bulk Price
The bulk price start at 2+,the system will give the discount price automatically,order more,discount more.
Add to favorite
Return Policy:
Returns accepted if product not as described,buyer pays return shipping:orkeep product& agree refund with seller View details

Product Description:

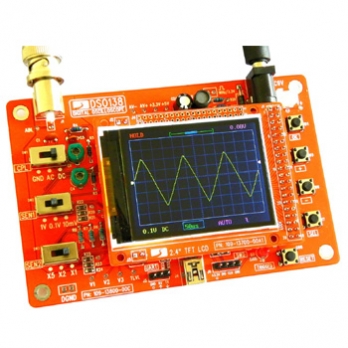

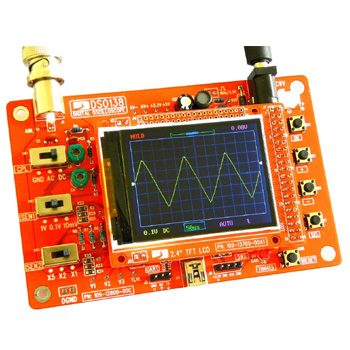

DSO138 was designed as a training oscilloscope kit. It contains only the basical oscilloscope functions with no fancy features. Simplicity in structure and easiness in assembly/operation are among the main targets of the design. For these purpose DSO138 uses mostly through-hole parts. The heart of DSO138 is a Cortex-M3 ARM processor (STM32F103C8) from ST. It uses 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element and displays nice and clear waveforms. Detailed assembly instructions are provided in combination with troubleshooting guide and schematc. Source codes are also available to allow user to add their own features.

DSO138 kits are solded in two configurations. One is with all SMD parts pre-soldered (PN: 13803K, replacing 13801K). The other is with only the main IC (the MCU) pre-soldered (PN: 13804K, replacing 13802K). The latter serves also as a SMD soldering training kit. For both configurations the MCU has been pre-programmed and no re-programming required.


DSO138 is partially open-sourced. This opens the possibility for users to add different features or develop new applications on the hardware.

Major features of DSO138:

Analog bandwidth: 0 - 200KHz

Sampling rate: 1Msps max

Sensitivity: 10mV/Div - 5V/Div

Sensitivity error: < 5%

Vertical resolution: 12-bit

Timebase: 10us/Div - 500s/Div

Record length: 1024 points

Built-in 1KHz/3.3V test signal

Waveform frozen (HOLD) function available

Save/recall waveform

Product Documents and firmwares:

Users Manua [for 13801K/02K]l

Users Manua [for 13803K/04K]l

Assembly Drawing

SMD Part List


Source codes [basic version]

DSO138 Library

How to Use the DSO138 Library

Schematic of the LCD board

How to Upgrade firmware for DSO138

Package Included:

DSO138 kit*1
