Eleduino DSO203 Mini Handheld Digital Storage Oscilloscope 0 (from 0 reviews) 149.00 USD In Stock

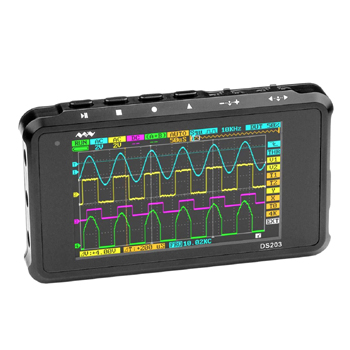

DSO203 Mini Handheld Digital Storage Oscilloscope

DSO203 Mini Handheld Digital Storage Oscilloscope #10596

US$ 149.00
Bulk Price
The bulk price start at 2+,the system will give the discount price automatically,order more,discount more.
Add to favorite
Return Policy:
Returns accepted if product not as described,buyer pays return shipping:orkeep product& agree refund with seller View details

2016 NEWEST VERSION, The oscilloscope easily suffice common electronic engineering tasks. It's based on ARM cortex M3 (STM32VCT6), providing 72Mhz analog bandwidth with integrated FPGA and high speed ADC. Internal 8MB USB disk could be used to store waveform, user application and upgrade firmware. This is the newest version with the software upgraded to lib 2.25 app2.6


3" 240 ¡Á 400 widescreen color TFT LCD screen
4 inputs & 4 tracks (Two 72Mhz analog channels and two digital channels)
A custom waveform output (including the built-in sine, square, triangle)
Built-in 2M USB disk
2 probe connectors
Signal Generator; Auto Measurement;Various Triggering Option
Open source


Analog channel * 2:[CH_A] [CH_B]
Digital channel * 2:[CH_C] [CH_D]
Vertical Scale:20mV-10V/div (1-2-5 step) on x1 probe / 200mV -100V/div (1-2-5 step) on probe
Vertical resolution:8 bit
Input coupling:AC/DC
Max input voltage:80Vpp (x1 probe) / 400Vpp (x10 probe)
Storage:4K per channel / 8K on single channel
Software trigger type:edge, pulse, level (to be added)
Hardware trigger type:edge
Trigger source:CH1/CH2/EXT
Trigger mode:Auto, Normal, Single, SCAN, None
Test Signal generater:10Hz to 8Mhz 2.8Vpp Square Wave, duty circle 10~90% adjustable / 10Hz to 20Khz 2.8Vpp Sin, Square, Saw, Triangle wave
Storage:Build-in 2MB USB disk, BMP, DAT file
Auto measure:Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
Cursor measurement:Level, Voltage
Display mode:CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
Sampling mode:real time
Sampling rate:30S/s - 72MS/s
Power:950mAh build in battery
Dimension:98 * 60 * 14.5 (mm) 355g

Package Included:

DSO203 *1
Probe 1x/10x *2
Mini USB Cable *1
