JYE Tech FG085 miniDDS Function Generator DIY Kit 0 (from 0 reviews) 47.90 USD In Stock

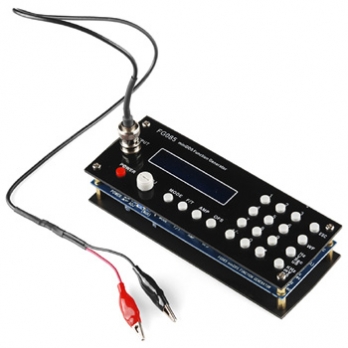

FG085 miniDDS Function Generator DIY Kit

FG085 miniDDS Function Generator DIY Kit #10516

(0) Write a review
US$ 47.90
Bulk Price
The bulk price start at 2+,the system will give the discount price automatically,order more,discount more.
Add to favorite
Return Policy:
Returns accepted if product not as described,buyer pays return shipping:orkeep product& agree refund with seller View details

Product Description:

The FG085 is a low cost yet versatile function generator capable of producing signals of many common waveforms. As an easy-to-use tool operation of FG085 is very simple and straightforward. It is an ideal test/experiment tool for electronic hobbyists and students.
This is another kit version of FG085 that has panels. All SMT parts have been pre-soldered on PCB. MCUs on board have been pre-programmed. Through-hold components are to be installed by users. Soldering skill is required to assemble the kit.


Frequency range: 0 - 200KHz (Sine)

Frequency resolution: 1Hz

Period resolution: 1ms

Maximum frequency error (CW mode): 0.1490Hz for F > 40Hz, 0.000596Hz for F <= 40Hz

Maximum frequency error (Sweep mode): 0.1490Hz

Amplitude range: 0 - 10V peak-to-peak

Amplitude resolution: 0.1V

Offset range: -5V - +5V

Offset resolution: 40mV

Memory depth: 256 bytes

Sample rate: 2.5Msps

Trigger input level: High - 3.5V (min), Low - 1.5V (max)

Output delay at trigger: < 5us (when no panel operation)

Sync Output Level: 5V TTL

Output impedance: 50 ohm

Power supply voltage: DC 15V (maximun 16V DC)

Current comsuption: < 150mA (without loading)

Dimension: 155 X 55 X 30 mm

Net weight: 100 gram

Documents, firmwares, and tools:

Quick Use Guide


Assembly Guide (08503K)



Assembly Back

Assembly Front

How to Generate User Defined Waveform

FG085 Waveform File Format

Waveform Template File

How to Upgrade Firmware

Package Included:

FG085 Function Generator DIY Kit*1
